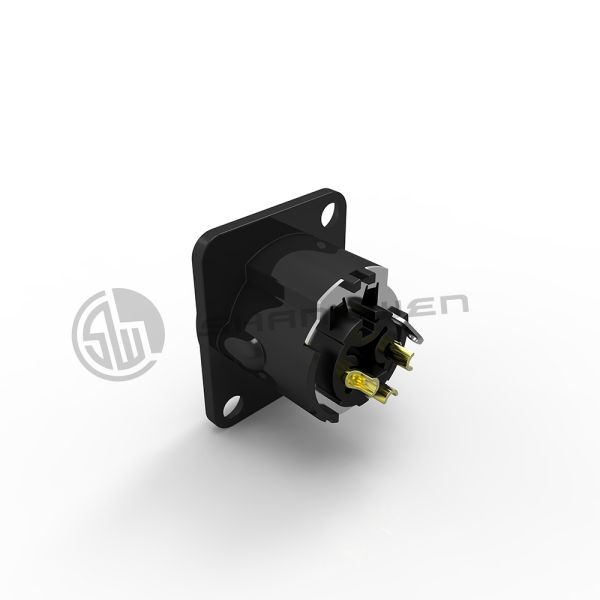

Indoor Panel Mount Chassis Microphone Mini XLR Audio Connector 3-Pin Male Socket Made of Zinc Alloy IP44 Rated D-Type Shape

Place of Origin : Guangdong, China

IP level : IP44

Brand Name : SHANGWEN

Model Number : SWM3X-3ZBN-KN

Type : XLR connector

Application : Audio & Video

Gender : Male

Industrial electronics : accessories

MOQ : 10 pieces

Price : CN¥7.01/pieces 10-99 pieces

Contact Now

Products Description
XLR connector-3 pin male socket
Indoor Panel Mount Chassis Microphone Mini XLR Audio Connector 3-Pin Male Socket Made of Zinc Alloy IP44 Rated D-Type Shape
Model：SWM3X-3ZBN-KN (Black)
☑Standard D mounting dimensions, fully matched to existing installation
☑Light size, can be installed front and back
☑Zinc alloy shell, contact point gold-plated
☑Can solve the fast connection requirement of input and output of DMX signal in outdoor conditions in the lighting industry
☑Protection class IP40
Indoor Panel Mount Chassis Microphone Mini XLR Audio Connector 3-Pin Male Socket Made of Zinc Alloy IP44 Rated D-Type Shape
Indoor Panel Mount Chassis Microphone Mini XLR Audio Connector 3-Pin Male Socket Made of Zinc Alloy IP44 Rated D-Type Shape
1.Product parameters
Connection Type
XLR
Gender
Male
2.Electrical parameters
Capacitance between contacts
≤4pF
Contact resistance
≤5mΩ
Dielectric strength
1.5kV DC
Insulation resistance
> 1.5GΩ (initial)
Rated current per contact
10A
Rated voltage
<50V
3.Mechanical parameters
Insertion force
≤ 40N
Withdrawal force
≤ 40N
Service life
＞1000 mating cycles
Chassis shape
D type
4.Material and environmental parameters
Contacts
Cu alloy
Contact plating
Au
Insert
Polyamide (PA 66 +30 % GF)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Cr Black
Solder ability
Complies with IEC 68-2-20
Flame-retardant grade
UL 94 HB
Protection class
IP40
Temperature range
-20℃to +80℃
5.Size reference (unit /mm)
Indoor Panel Mount Chassis Microphone Mini XLR Audio Connector 3-Pin Male Socket Made of Zinc Alloy IP44 Rated D-Type Shape
Application area
Indoor Panel Mount Chassis Microphone Mini XLR Audio Connector 3-Pin Male Socket Made of Zinc Alloy IP44 Rated D-Type Shape
Company Information
Indoor Panel Mount Chassis Microphone Mini XLR Audio Connector 3-Pin Male Socket Made of Zinc Alloy IP44 Rated D-Type Shape
Patent & Certification
Indoor Panel Mount Chassis Microphone Mini XLR Audio Connector 3-Pin Male Socket Made of Zinc Alloy IP44 Rated D-Type Shape
Exhibition activities
Indoor Panel Mount Chassis Microphone Mini XLR Audio Connector 3-Pin Male Socket Made of Zinc Alloy IP44 Rated D-Type Shape
Packaging reference
Indoor Panel Mount Chassis Microphone Mini XLR Audio Connector 3-Pin Male Socket Made of Zinc Alloy IP44 Rated D-Type Shape
Payment and logistics
Indoor Panel Mount Chassis Microphone Mini XLR Audio Connector 3-Pin Male Socket Made of Zinc Alloy IP44 Rated D-Type Shape
FAQ
Indoor Panel Mount Chassis Microphone Mini XLR Audio Connector 3-Pin Male Socket Made of Zinc Alloy IP44 Rated D-Type Shape
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
